Action Workflows against a Document
Contents
Overview
From the Document form on the mobile app, the Workflows associated with the selected Document are displayed and the Workflow Activity Owner is allowed to 'action' them; otherwise it can be viewed as read-only.
Screen Explanation
Action Workflow against a Document can be processed by selecting the Workflow icon in the Document sub-Action bar.
How Do I?
How Do I Action a Workflow against the Document form?
-There are two ways to search and select for the Document No associated with the Workflow:
- Search the Document in SDD - Search & Download Documents screen, or
- Search the Document in AWF - Action Workflows (Mobile App) screen by entering the specific Document No in the filter screen.

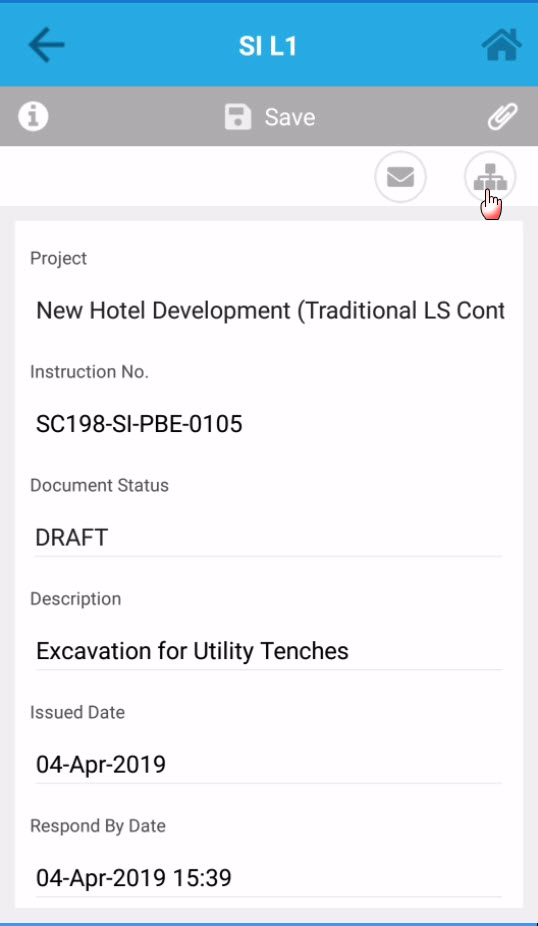

1. Select the Workflow icon on the Document form sub-Action bar. |
|---|
|
Once the Document linked with the Workflow to be 'actioned' has been selected, press the Workflow icon on the sub-Action bar to display the Workflow Activity list. |

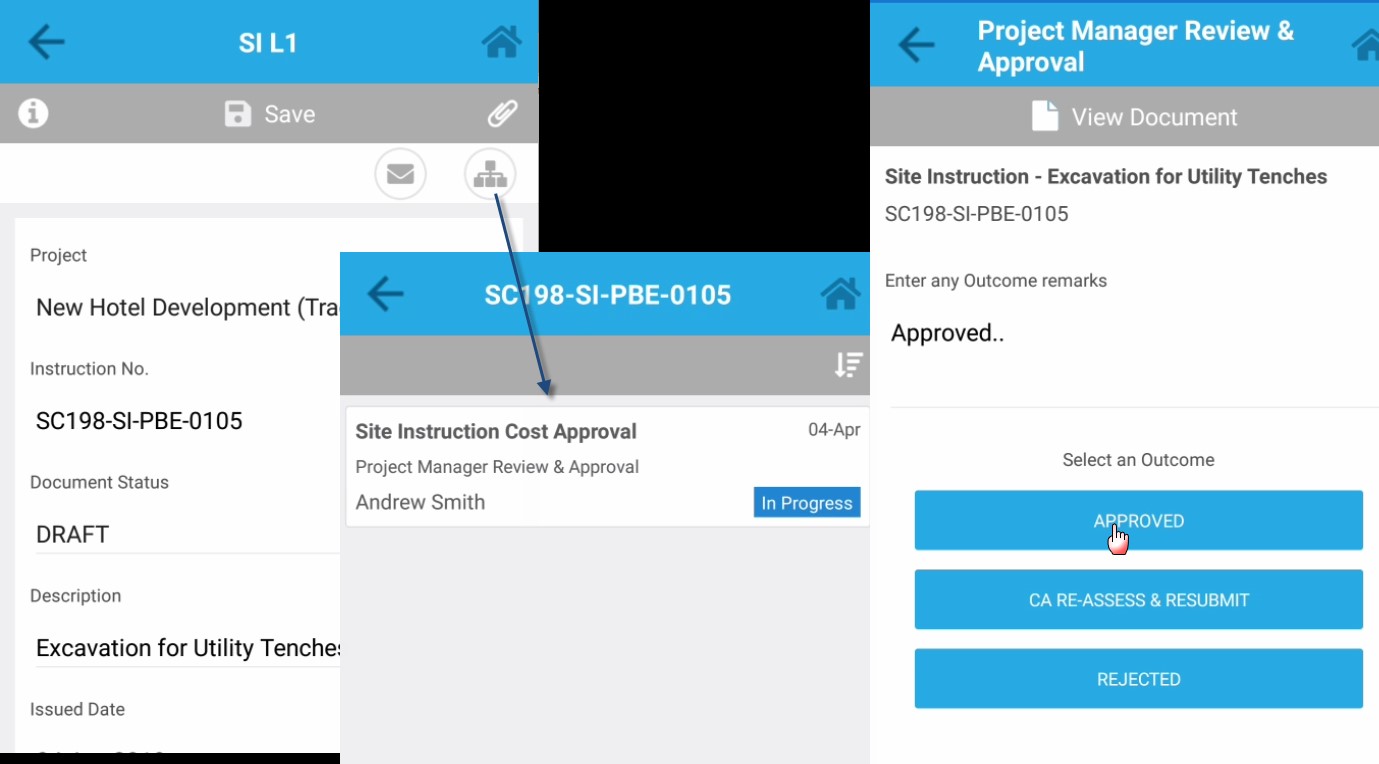

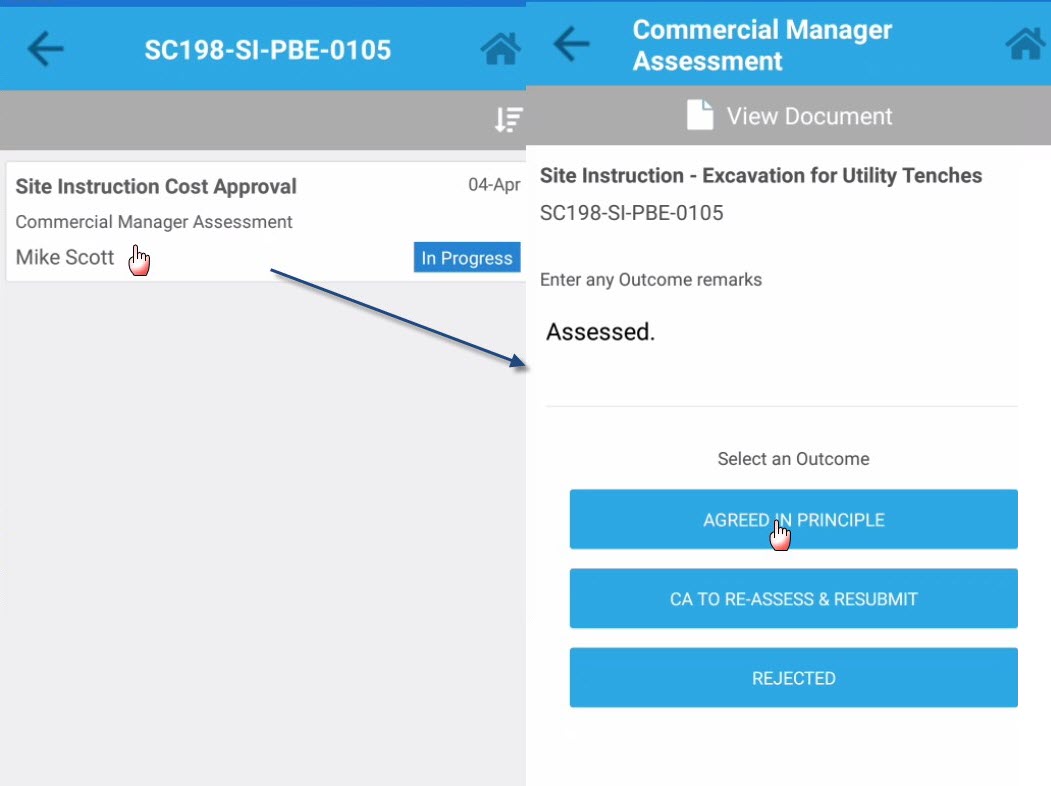

2. Select from the Workflow Activity list |
|---|
|

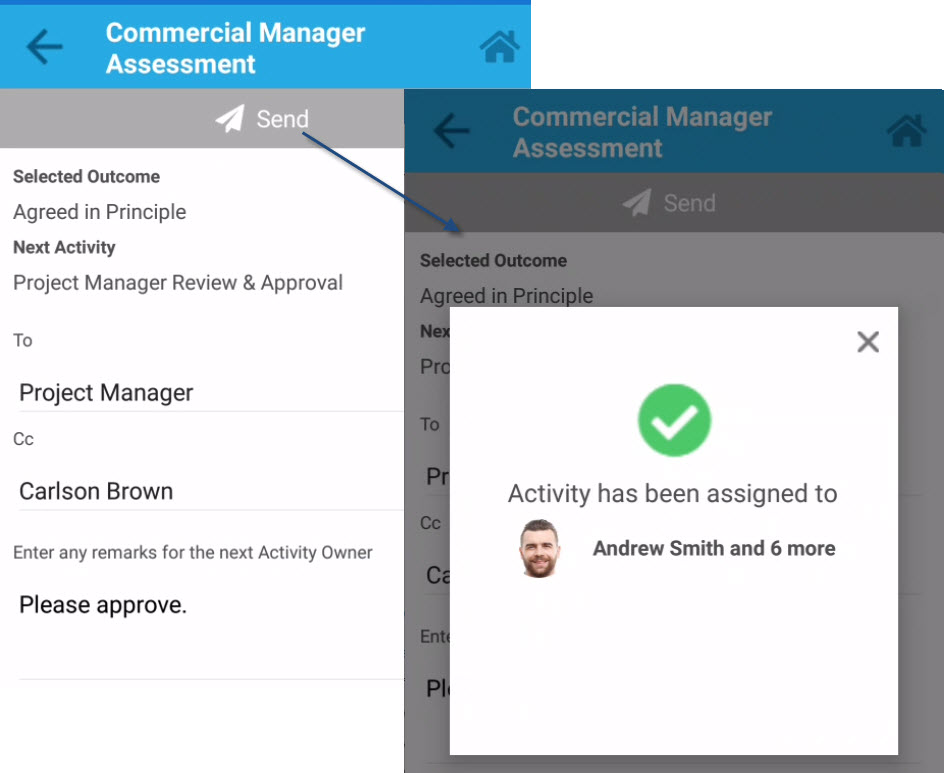

Select the Workflow Activity to be 'actioned' and the Action Workflow screen will be opened. Set the Outcome and progress to the next Activity Owner. |
|
| Once sent, click the close (X) icon on the confirmation message. |
| 3. View the Workflow Activity list after sending to the Next Activity Owner. |
|---|
|
After closing the confirmation message (as shown in the previous illustration), the screen will be redirected to the Workflow Activity list and it will e automatically updated with the next Activity Owner being displayed. Note - In the event that the logged in User tried to open again the Workflow Activity, the screen will be in 'Read Only' mode already and will display a message 'VIEW ONLY - CANNOT CHANGE (You are not the Owner)'. As the next Activity Owner(s) logs in, they can view and do the same process to 'action' the Workflow Activity sent to them. |
Examples of Use

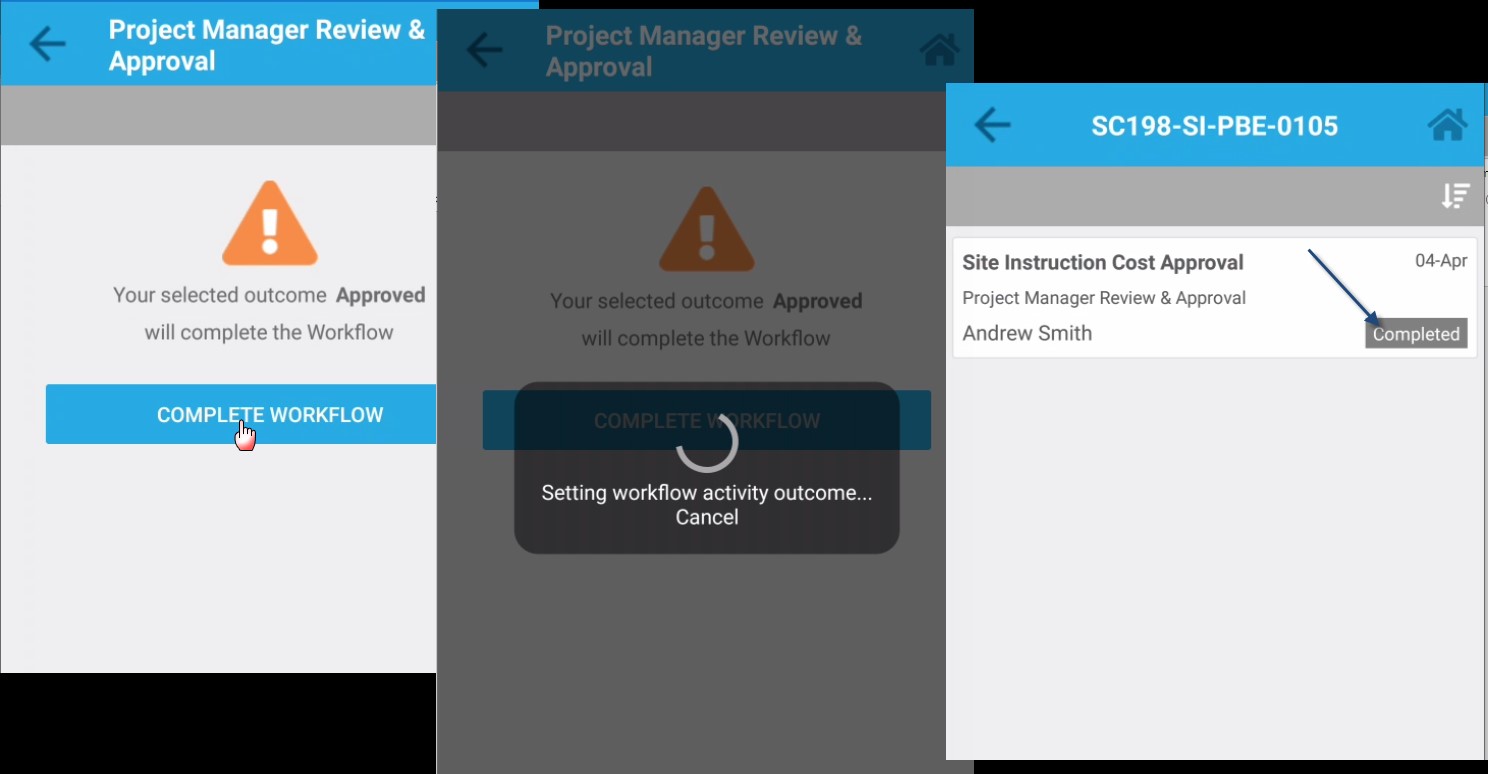

Sample Completed Workflow in the Workflow Activity list against a Document
