Register Dashboard
Contents
Overview
Register Dashboard focus on displaying information in a graphical format related to the actual Register and its corresponding Documents.
IMPORTANT
Even NON-IsSystem Administrator can set up a Register Dashboard Screen Explanation. Users with access to those configured Register Portlets can view them by selecting in the Registers drop-down.
Screen Explanation
Sample configured Portlets for Drawings Register
Sample Configured Portlets for RFI Register
Field/Icon | Description |
|---|---|
Project Filter | Filters the Portlet by Project. |
Registers | Register drop-down selection - display only the active Registers. |
| Plus Icon/ Portlet Settings | Screen for Portlet configuration. |
Portlet Settings
Field/Button | Description |
|---|---|
Portlet | Drop-down selection of Portlet names. |
Title | The Portlet title - by default it displays the Portlet name but it can be edited/renamed. |
| Chart Type | The drop-down list chart type on how the Portlet is to be displayed - there is already a default value as indicated in the Portlet selection; however, it can be changed. |
| Row | The row where the Portlet is to be located. |
| Column | The column where the selected Portlet is to be located. Note - the row and column can be manually changed by dragging the Portlet to the desired location. |
Portlet selection
Drop-down selection of Portlets.

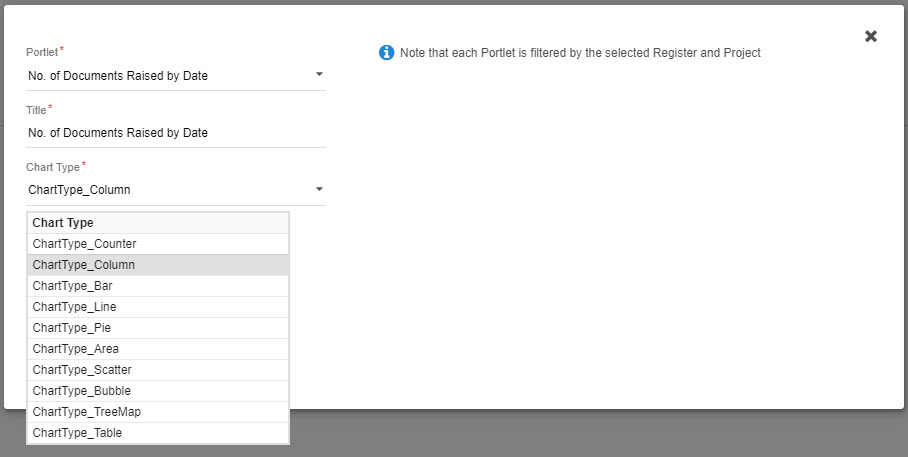

Chart Type
The drop-down list of chart type.
Examples of Use
Sample display of Configured Register Dashboard.
Displaying the configured Registers that the logged-in User has access to.
Sample drill-down of records.
The record is redirected to Master Inquiry screen.
